cocoa powder grinding machine
Category: powdering Machine

Stainless steel cocoa powder grinding machine on sale

cocoa powder grinding machine utilizes the high-speed relative movement of the movable toothed disc and the fixed toothed disc to make the crushed material crushed by the comprehensive action of tooth impact, friction and impact between materials. The machine is simple in structure, strong in operation, stable in operation and good in crushing effect. The crushed material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing mesh screens with different apertures. In addition, the machine is all stainless steel.

Your Machine Requirements

Features

  • cocoa powder grinding machine speed is fast, and the output is larger than that of the crusher with the same power.
  • Low temperature pulverization does not affect material properties.
  • cocoa powder grinding machine is easy to operate and easy to maintain.
  • For food contact parts, use 304 stainless steel.
  • Fully enclosed operation, dust removal efficiency up to 99.5%, in line with "GMP" requirements

Working Principle

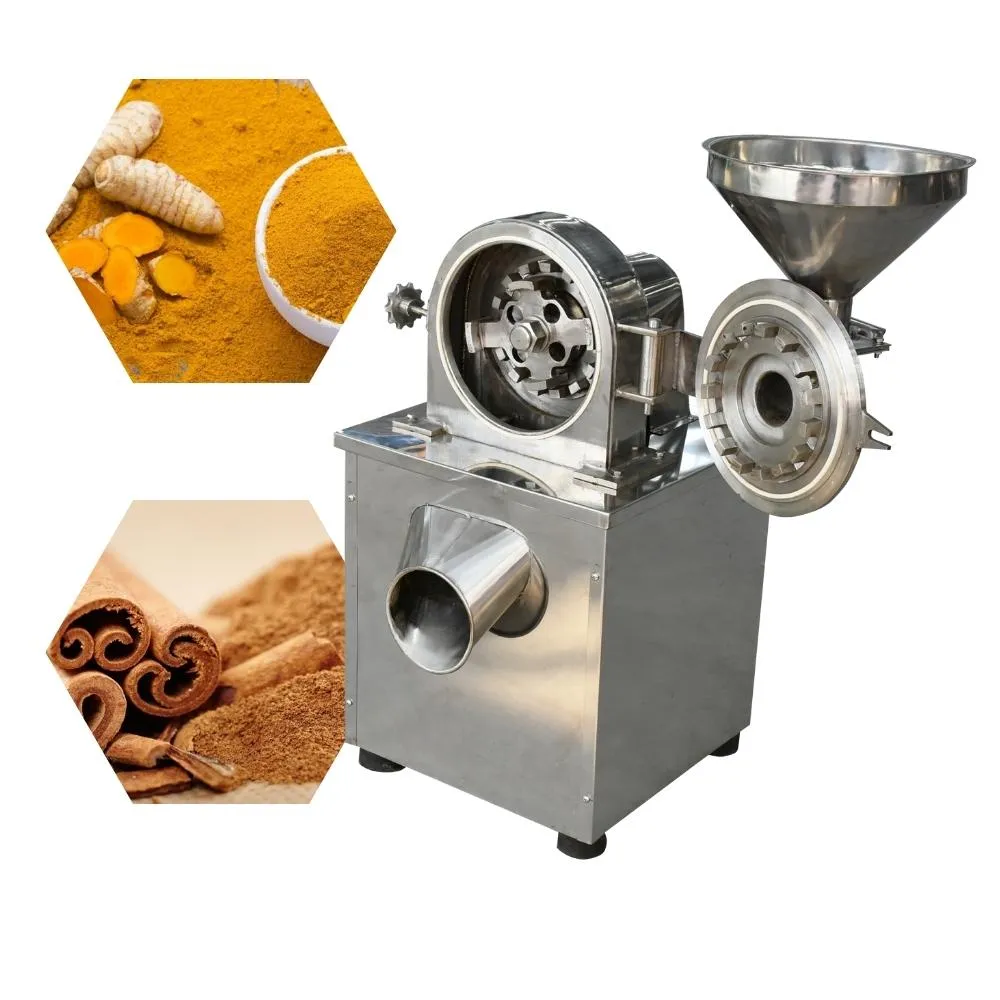

Cocoa powder grinding machine consists of three parts: a frame, a crushing chamber, and a hopper.The main shaft is equipped with a movable gear plate, the movable gear plate is equipped with a movable knife, and a fixed gear plate is installed in the crushing door. The fixed gear plate is equipped with a fixed gear ring with steel teeth. The movable knife and the fixed gear ring on the movable gear plate are arranged alternately. When the main shaft is running at a high speed, the movable gear sleeve rotates relatively, and the material is crushed under the combined effects of mutual impact, friction, shear and material impact between the fixed teeth and the movable teeth. The particle size is obtained by changing the sieves with different apertures.

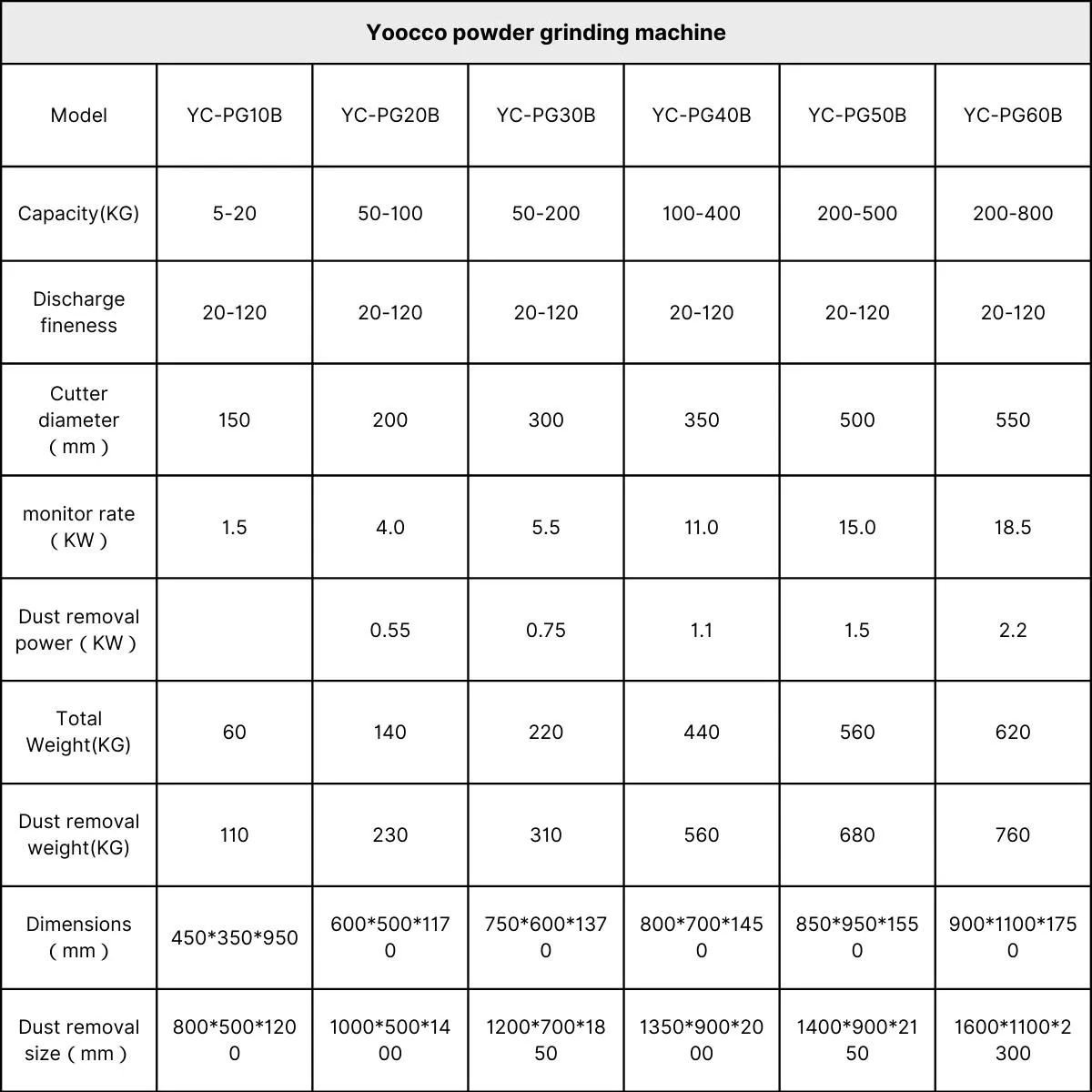

Tech Specs

Yoocco powder grinding machine

Frequently Asked Questions

what materials your cocoa powder grinding machine can process?

Yoocco powder grinding machine can process kinds of materials, like spice, sugar, salt, tea, herb, wood, etc. with different expected sizes various customers different demands through changing the different screens , widely used in food ,industry etc .

What is the highest crushing fineness of your machine?

The grinding fineness of our universal pulverizer is up to 120 mesh. If a higher fineness is required, a superfine pulverizing machine is required.

Whether your cocoa powder grinding machine can be equipped with water cooling and dust removal device.

Yes we can equipped cooling and dust removal device base on clients' requirement.

What's the main wear spare parts?

Active chainring and Fixed chainring.

What information I need to advise before you send offer?

You need to tell me which kind of material you want to make and how many kg/h you want. It will be better if you can advise photos of powder you want to make.

What if thecocoa powder grinding machine is damaged during using?

We have a full set of parts in our warehouse, which can be sent out immediately.

cocoa pieces cocoa powder 1200
